BHRS-3400
BSK
BSK Havalandırma Ekipmanları A.Ş. is a Turkish company specializing in the production of ventilation and air conditioning equipment, including fans, filters, and HVAC units. The company focuses on innovative and energy-efficient solutions tailored to the needs of customers in both domestic and international markets.
SKU :
BHRS-3400
100% original guarantee
Return within 30days
Fast delivery

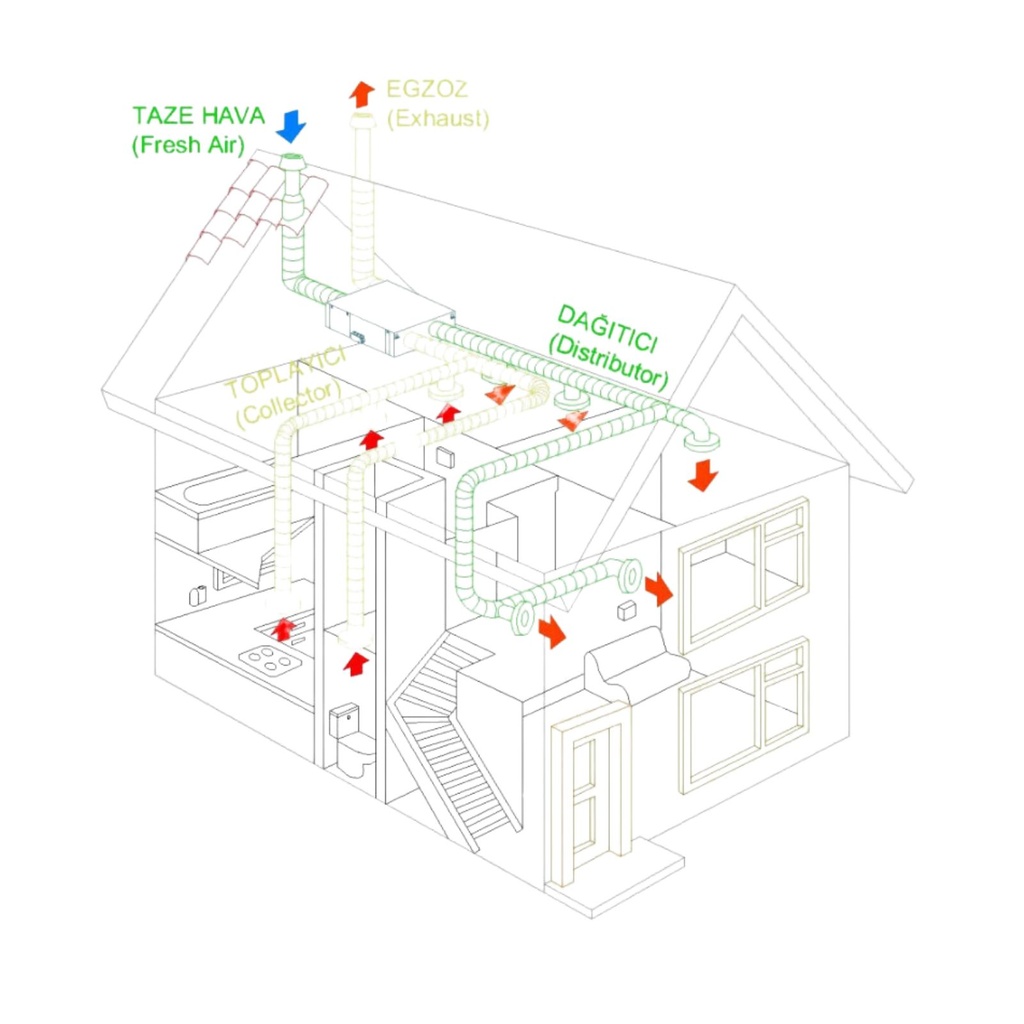

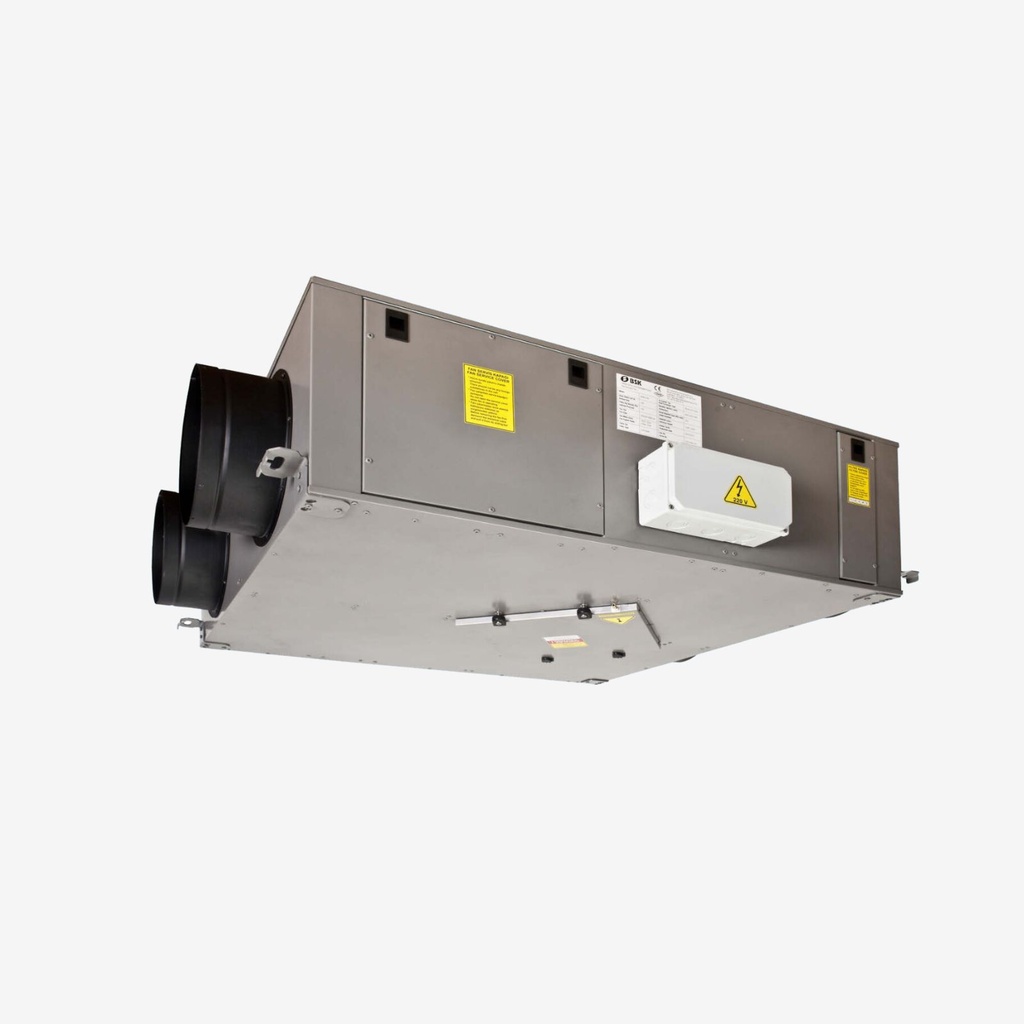

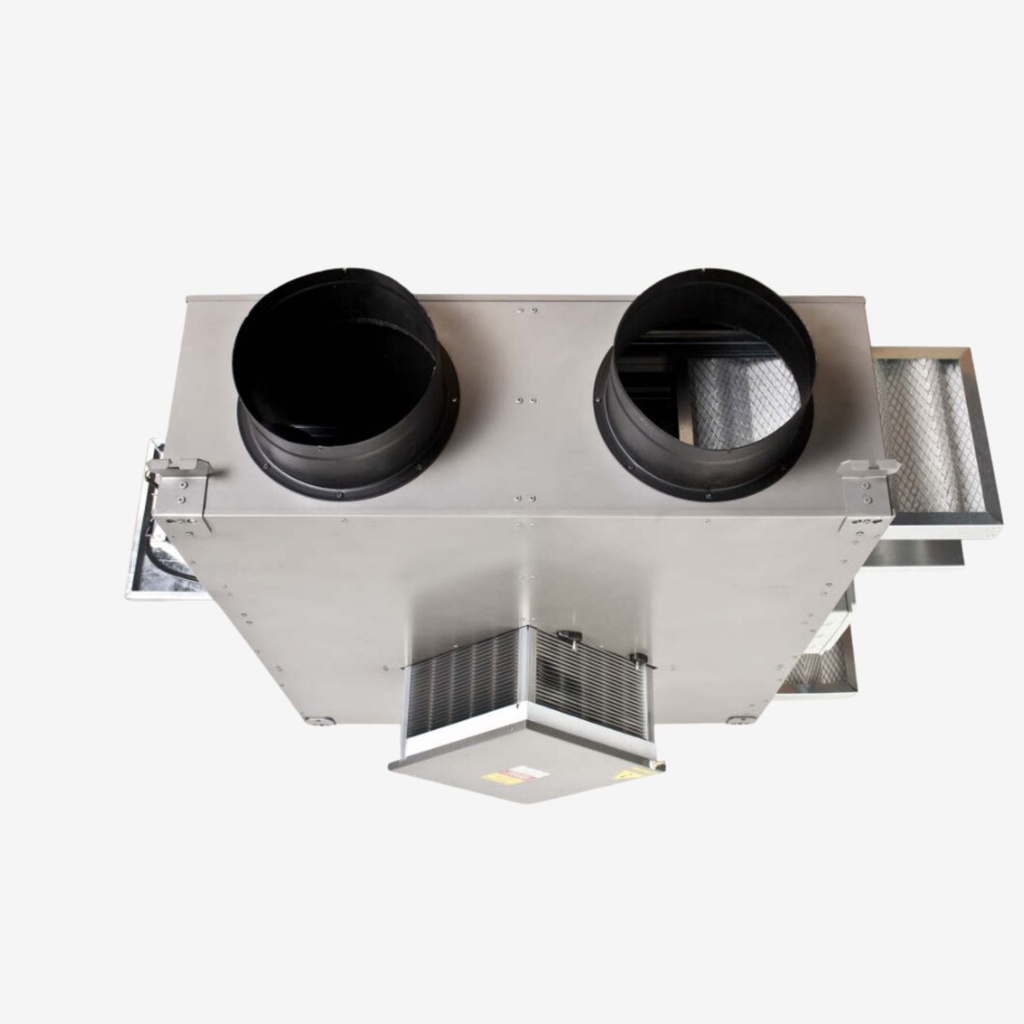

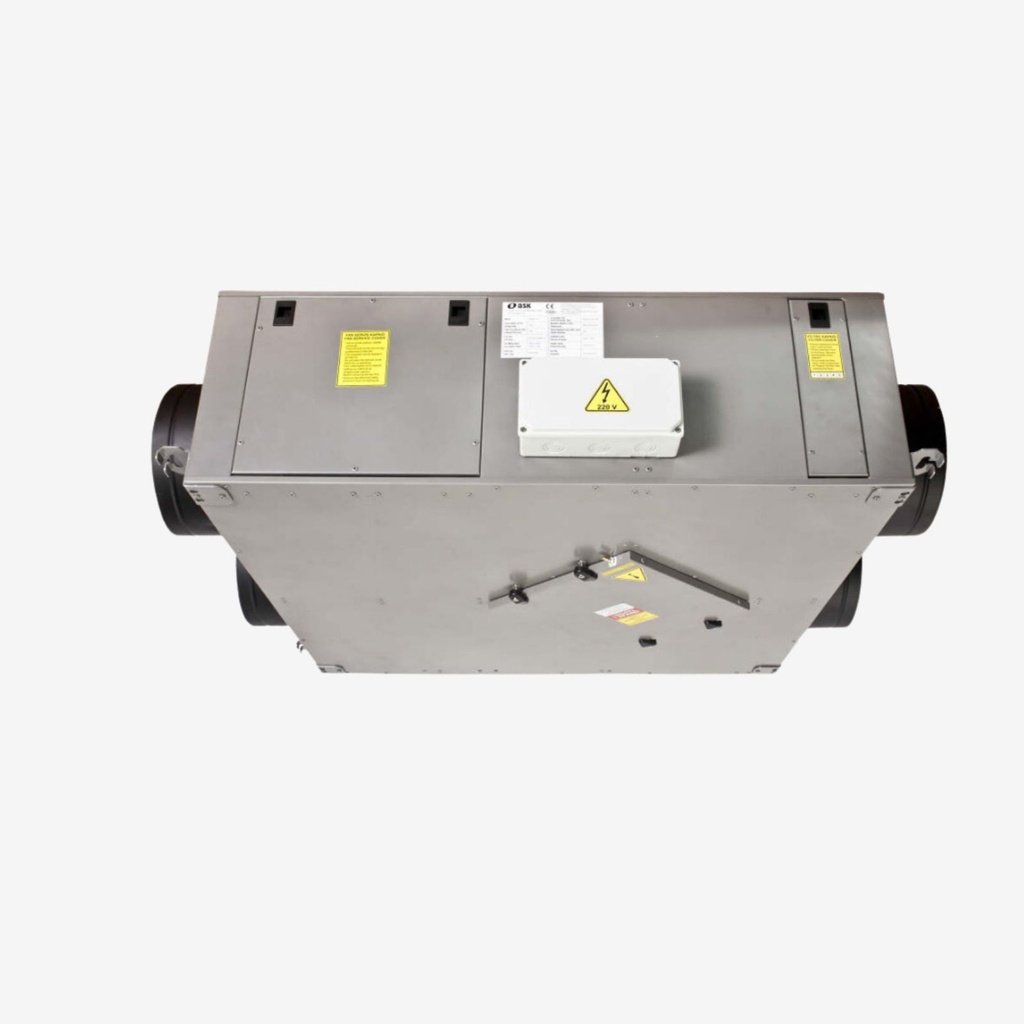

BSK ceiling type heat recovery units are designed to provide energy saving as well as high quality inside air. Heat recovering ventilation systems regain the heat energy, which is lost during ventilation process, by executing heat transfer between fresh air and exhaust air.
High-Performance Aluminium Plate Heat Exchangers
- Excellent heat conductivity for efficient heat transfer
- Enables warm and cold air flows to exchange heat without mixing
- Optimized design ensures effective temperature management
Easy Assembly & Maintenance
- Compact structure fits conveniently within suspended ceilings
- Simple installation process requiring minimal modifications
- Low maintenance requirements to reduce operating costs
Improved Air Quality
- Fresh outside air is continuously supplied without energy loss
- Stale indoor air is efficiently removed, maintaining a healthy indoor environment
- Maintains optimal temperature balance while reducing HVAC loads
Quiet Operation

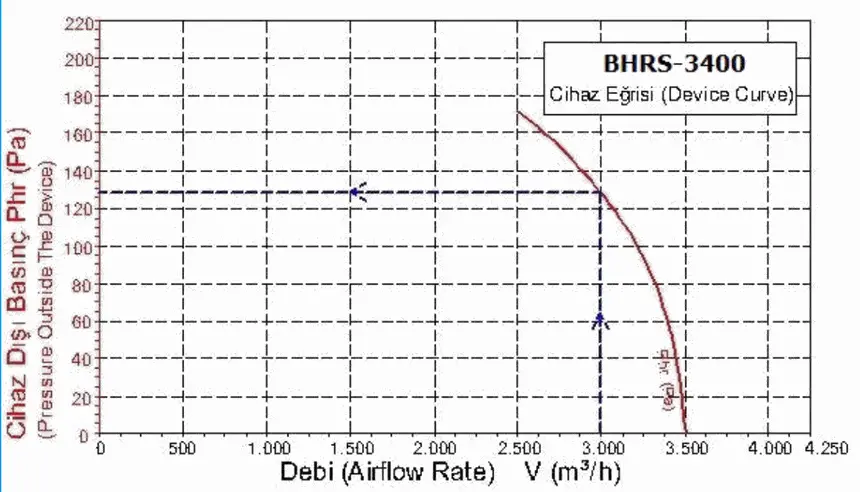

| Air Flow Rate | 3400 |
| External Static Pressure | 100 |
| Voltage | 230 V / 50 Hz |
| Power | 640 × 2 |
| Current | 3,1 x 2 |
| Wet Bulb Summer Efficiency | 50,9 |
| Wet Bulb Winter Efficiency | 53,3 |
| Sound Level of Noise | 52 |

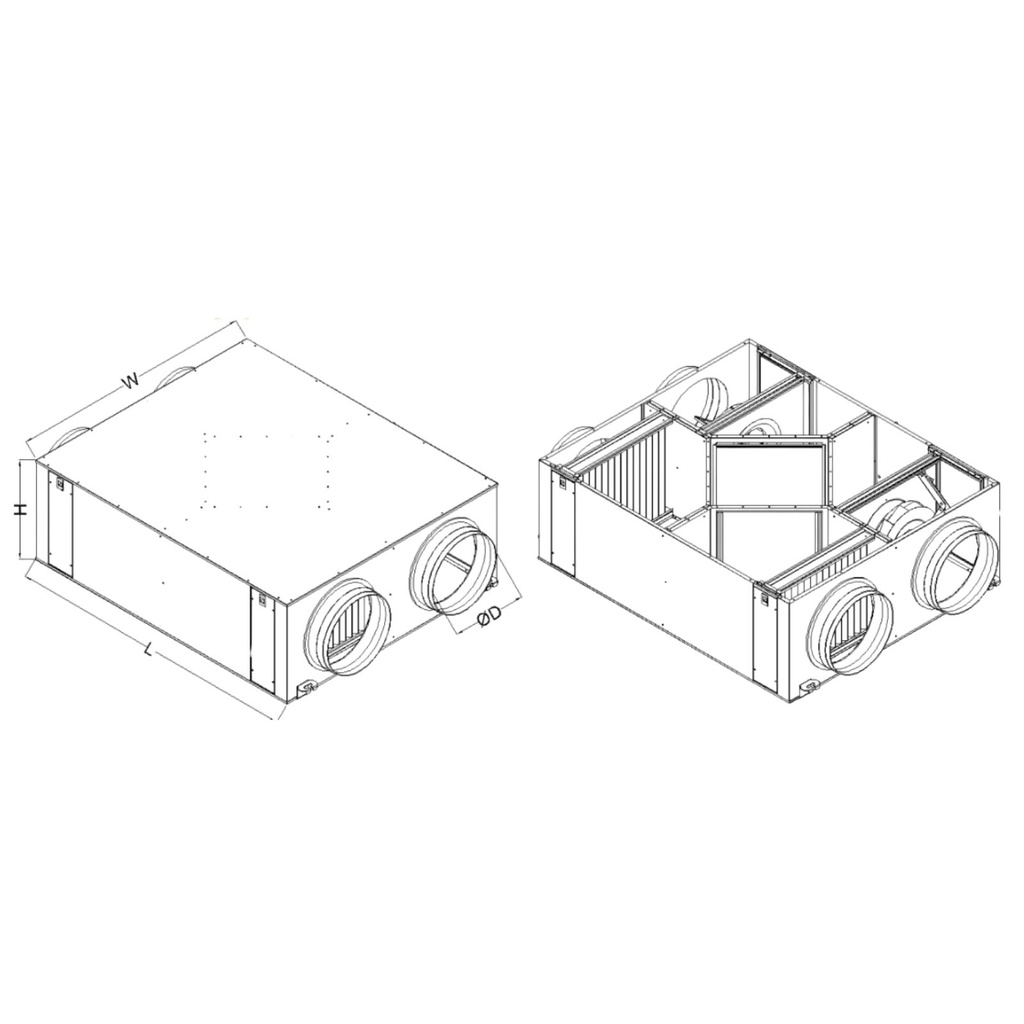

| Length | 1500 |
| Width | 1160 |
| Height | 520 |
| Duct Connection | 350x350 |
| Weight | 129 |
| Brand | BSK |
