Ceramic heat exchanger
The honeycomb ceramic storage core captures heat during extract and transfers it to the incoming air.
🇪🇺 Made in EU
Fresh air with heat recovery for one room

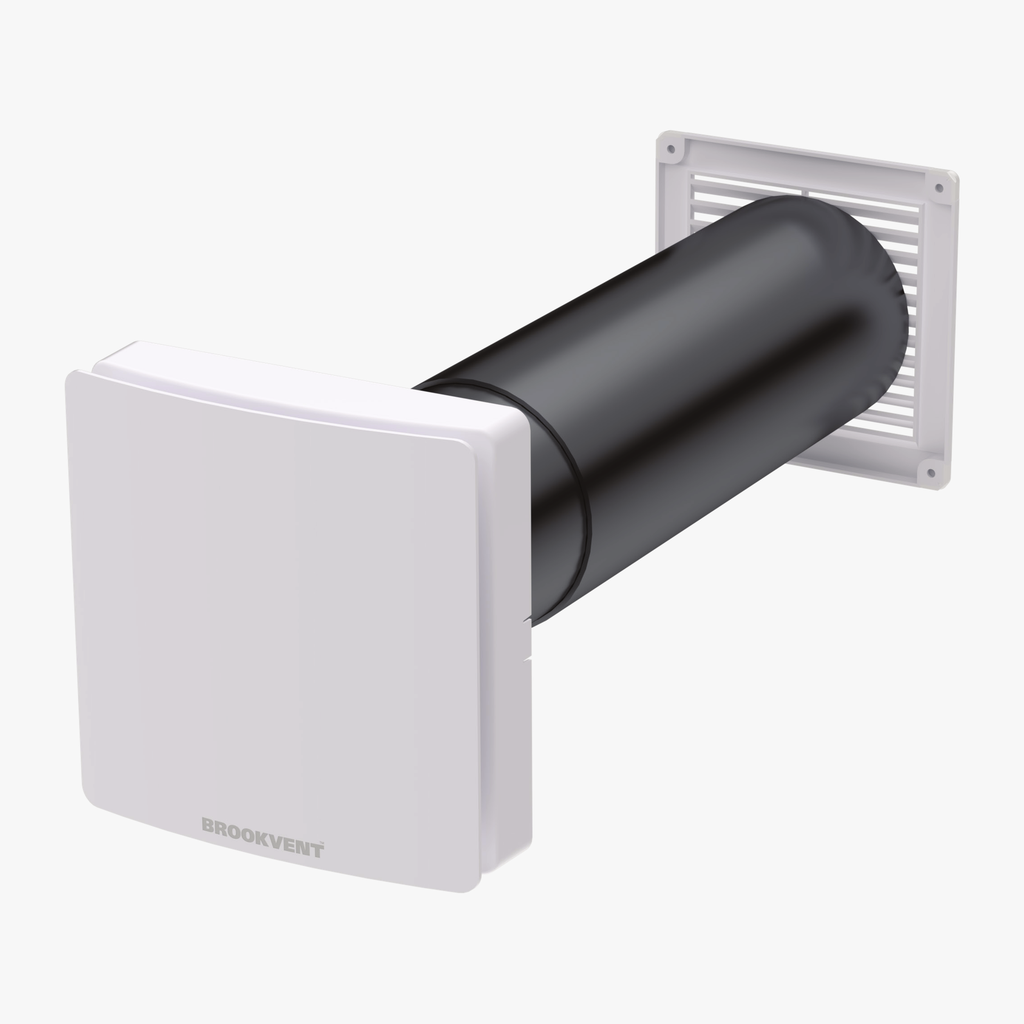

Brookvent Aircycle ONE PRO 150 is a wall-mounted single-room heat recovery unit with reversible operation and a ceramic heat exchanger. Its three speeds provide alternating extract and supply airflow up to 60 m³/h.
Maximum airflow60 m³/h
Average efficiency83,9 %
Maximum input3,3 W
Controlled air exchange
A compact unit for external walls with easy indoor access to the filter.
Efficient EC motor
The bidirectional brushless EC motor with ball bearings operates at three speeds.
Simple maintenance
The front cover can be removed without tools and the dust filter is accessible from inside the room.
Operation and synchronisation
Units can be synchronised by cable (recommended) or through the 50 Hz mains frequency. Free-cooling mode is also available.
Technical data
Speeds I / II / III
I
II
III
Airflow
20 m³/h
42 m³/h
60 m³/h
Power input
1,7 W
2,5 W
3,3 W
Average thermal efficiency
87 %
83,9 %
80,3 %
Sound pressure at 3 m
10 dBA
20 dBA
26 dBA
Energy classA
Ingress and protection classIPX4 / II
Specific power input0,058 W/(m³/h)
Power supply230 V / 50 Hz
The 83.9% value applies to reference speed II. The catalogue states that the sound-pressure figures are for comparison only.
Installation dimensions
Front cover220 × 220 mm
Wall thickness300–570 mm
Duct diameterØ 159 mm
External grille202 × 202 mm
Wall-mounted three-speed controller included in the price. One controller can operate up to 10 units.
| Brand | Brookvent |
Brookvent Aircycle ONE PRO - katalóg.pdf
Download
