Window reveal
WINDOW REVEAL ventilation kit, pipe dimensions 60x222 mm, compatible with Ambientika systems.
Ambientika
Ambientika is a modern brand specializing in elegant and functional solutions in interior design and architecture. With a focus on quality, aesthetics, and sustainability, Ambientika offers products that blend innovative technology with timeless style. Ambientika inspires its customers to create harmonious spaces that reflect their unique taste and lifestyle.
100% original guarantee
Return within 30days
Fast delivery
Window Reveal

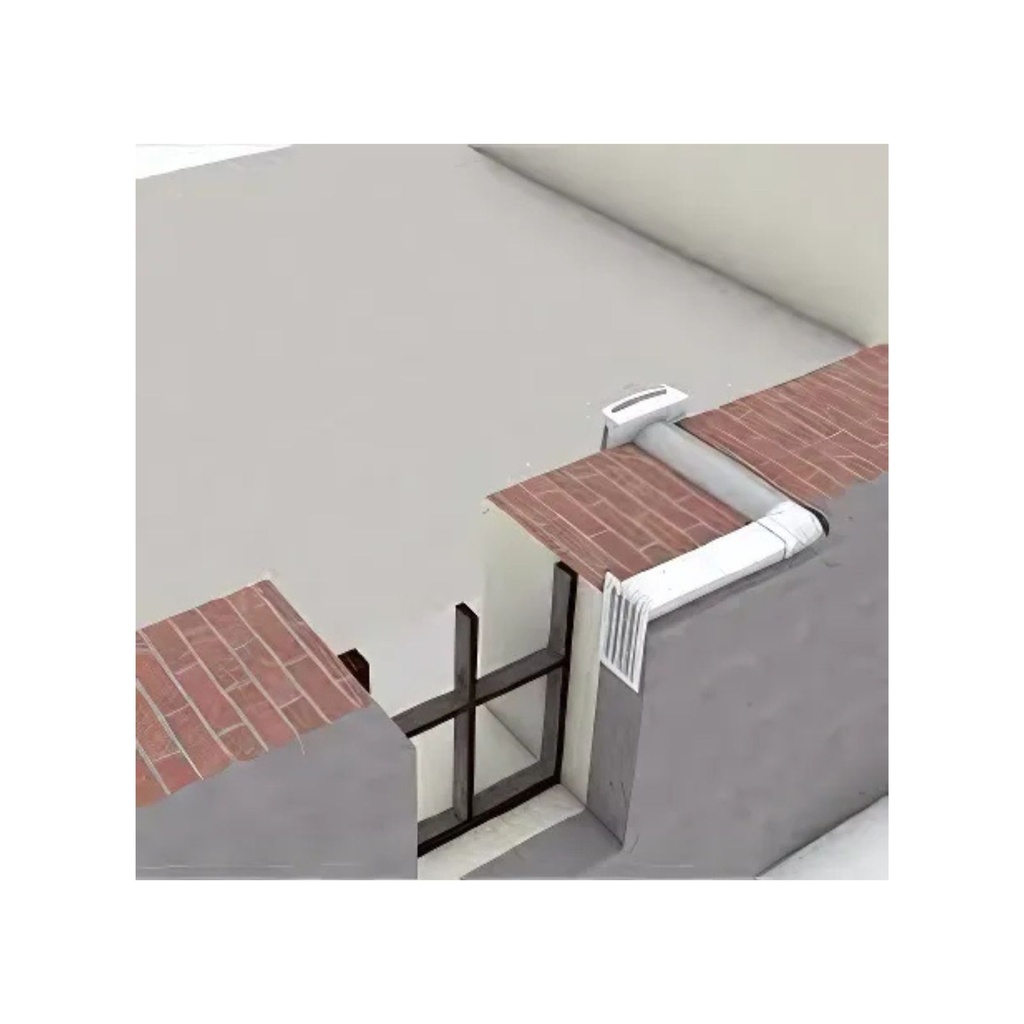

The Window Reveal is designed to enable the installation of the Ambientika heat recuperator through a window frame instead of an external wall, providing an innovative and practical solution for effective ventilation. This kit ensures high performance while maintaining a sleek and compact design.
Key Components
1. External Grille:
- Made from white PVC.
- Dimensions: 75 x 250 mm.
2. Insulated Pipe:
- White PVC with a right-angled cross-section (54 x 216 mm).
- Outer dimensions enlarged to 60 x 222 mm with 3-mm cladding for insulation.
- Features a ring clamp with a gasket for connection to an existing 160-mm pipe.
- Can be cut to size on-site to fit specific requirements.
3. Polystyrene Closure:
- Protects the right-angled pipe during installation.
- Must be removed after completing the installation of the Ambientika unit and before installing the external grille.
Features and Benefits
- Customizable Fit: Pipe length can be adjusted on-site, and it is suitable for walls with a thickness between 33 cm and 56 cm.
- Water Protection: Pipe installation includes a 3° inclination towards the grille to prevent water accumulation.
- Durable Materials: High-quality PVC and polystyrene components ensure long-lasting performance.
- Efficient Ventilation: Ensures proper air circulation and heat recovery through a practical and compact solution.
| Brand | Ambientika |
