Diameter note: DN75 refers to the 75 mm outside duct diameter; the inside diameter is 63 mm.
| Brand | Ventit |
VentPlan data
VentPlan model
Component
- Model
- DB 15x75, throat 125-160 (OD75–ID63)
- Number
- 711117
- Manufacturer
- Ventit
- Category
- dividers
2D model
3D model
Materials
3D preview
OBJ + MTL

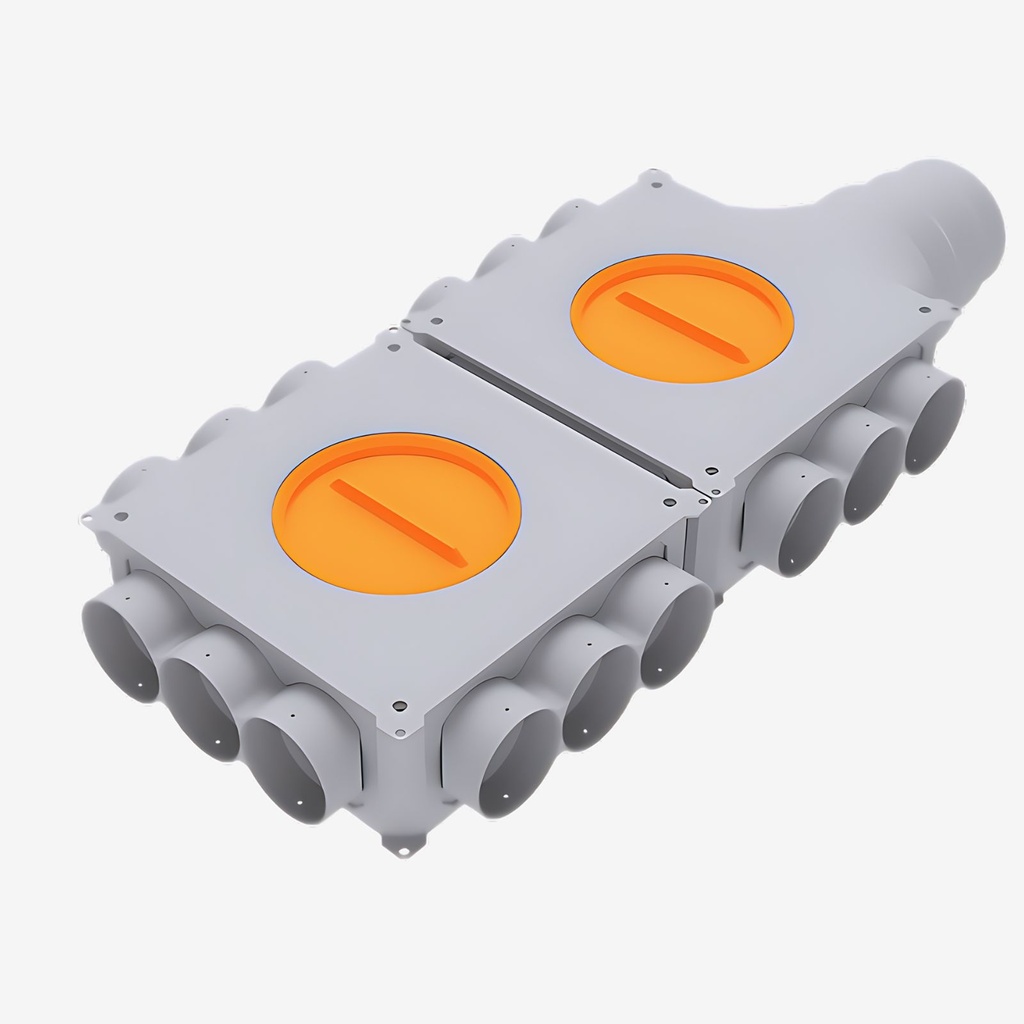

Component · DB 15x75, throat 125-160 (OD75–ID63)
Loading 3D model...
Derived from model name
Distribution box for connecting 1× OD75-ID63 (OD75/ID63). Available: 2D diagram, 3D OBJ model, MTL materials.
| Component type | distribution box |
|---|---|
| Secondary connections | 1× OD75-ID63 |
| Outer / inner diameter | OD75 / ID63 |
| 3D model | OBJ + MTL |
Frequently asked questions
How many OD75-ID63 connections does this component have?
1 secondary OD75-ID63 connections (OD75/ID63).
Is a 3D model available?
Yes, OBJ + MTL.
Is a 2D technical diagram available?
Yes.
