What is in the box
Diameter note: DN75 refers to the 75 mm outside duct diameter; the inside diameter is 63 mm.
| Brand | Ventit |
VentPlan data
VentPlan model
Component
- Model
- Distributor 9xDN75 (OD75–ID63 / Ø125 - Ø160)
- Number
- 711112
- Manufacturer
- Ventit
- Category
- dividers
2D model
3D model
Materials
3D preview
OBJ + MTL

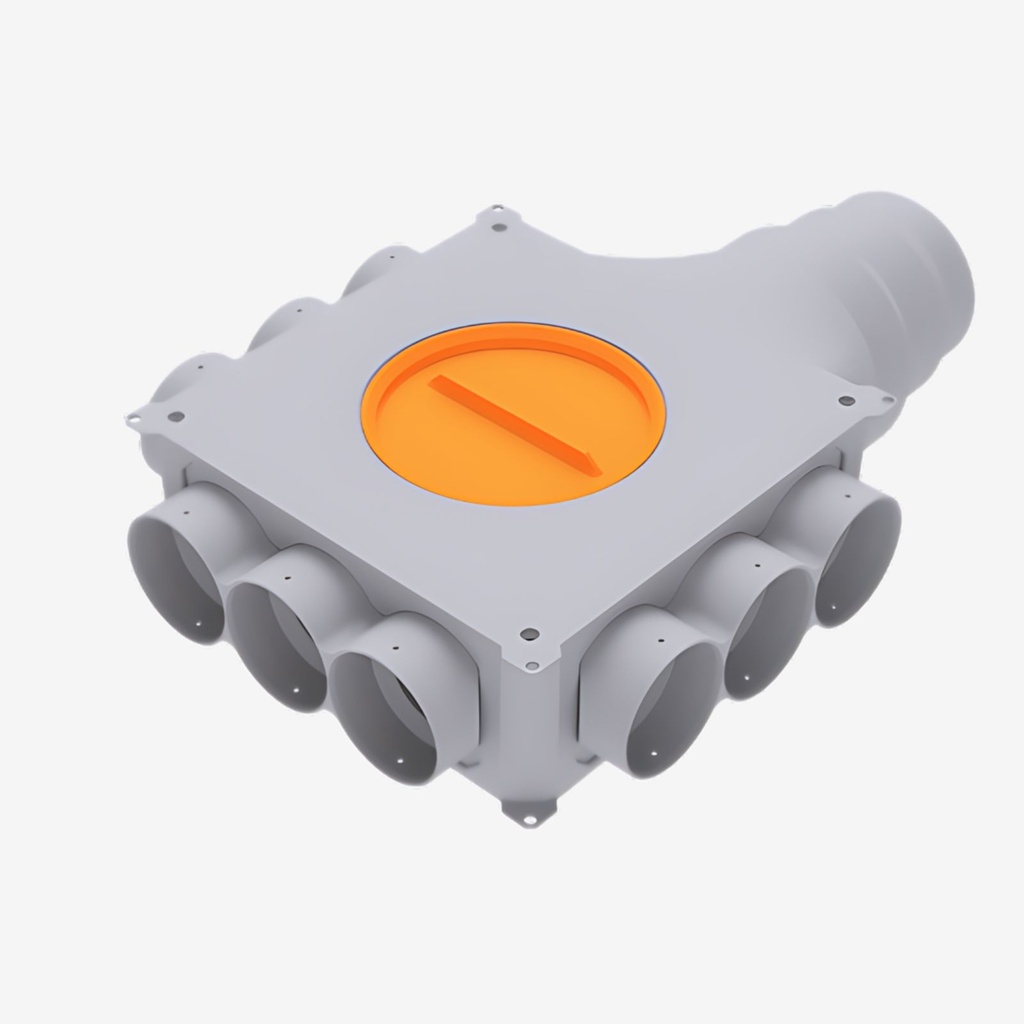

Component · Distributor 9xDN75 (OD75–ID63 / Ø125 - Ø160)
Loading 3D model...
Derived from model name
Distribution box for connecting 9× DN75 (OD75/ID63) to main port Ø125. Available: 2D diagram, 3D OBJ model, MTL materials.
| Component type | distribution box |
|---|---|
| Secondary connections | 9× DN75 |
| Outer / inner diameter | OD75 / ID63 |
| Main port | Ø125 |
| 3D model | OBJ + MTL |
Frequently asked questions
What main port does this distribution box have?
It has a Ø125 main port.
How many DN75 connections does this component have?
9 secondary DN75 connections (OD75/ID63).
Is a 3D model available?
Yes, OBJ + MTL.
Is a 2D technical diagram available?
Yes.
