Flexit Air handling unit ProNordic L350R
ProNordic L350R - Max flow 5850 m³/h, >83% heat recovery, Siemens Climatix, flexible configuration, compact design, quiet operation, energy-efficient.
Flexit
Flexit is an international company with over 50 years of experience, specializing in energy-efficient ventilation and air handling solutions for improving indoor air quality in residential and commercial buildings.
SKU :
156000
100% original guarantee
Return within 30days
Fast delivery

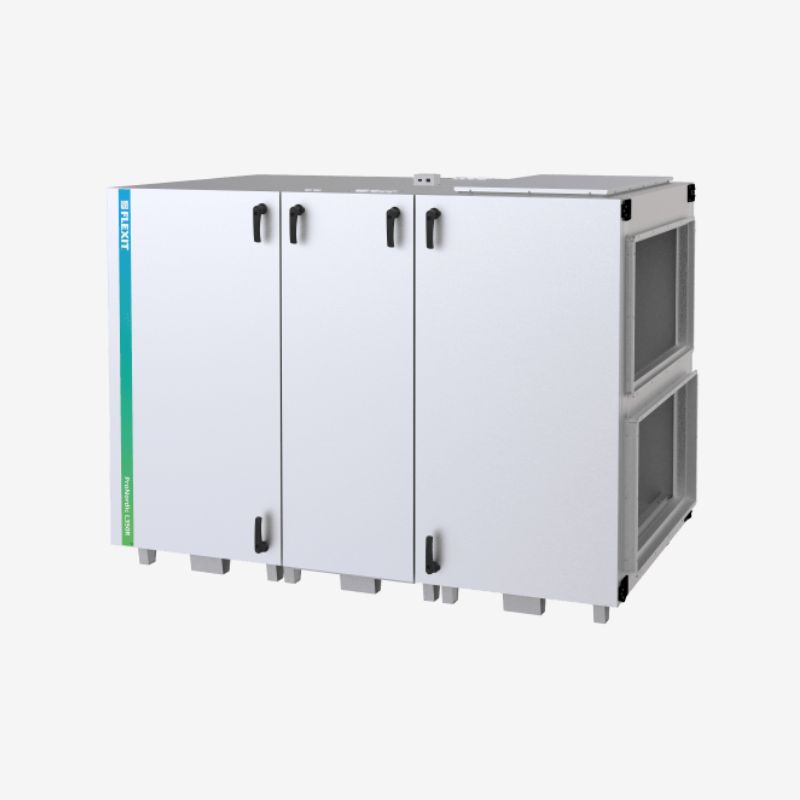

Flexit ProNordic L350R Air Handling Unit
The Flexit ProNordic L350R is a high-performance air handling unit designed for commercial applications. This compact and energy-efficient system ensures excellent air quality while offering versatile installation options. With easy adaptability, it supports both right-hand and left-hand configurations, minimizing errors during ordering and reducing project costs.
Key Features:
- Compact Design: Ideal for tight spaces, simplifying transport and installation.
- Flexible Configuration: Easily converted between right-hand and left-hand variants on-site.
- Energy Efficiency: Designed for silent operation and minimal energy consumption.
- Advanced Control: Managed via Siemens Climatix, compatible with ProPanel or ProTouch control panels.
- Customizable Heating Options: Compatible with electric or water-based after-heating batteries as optional accessories.
This unit is designed to provide clean air, a comfortable indoor climate, and long-lasting performance, making it an essential solution for any commercial building requiring a modern approach to ventilation.
| L350R with electric battery 230V | L350R with electric battery 400V | L350R with water battery 230V | L350R with water battery 400V |
|
|---|---|---|---|---|
| Rated Voltage | 230 V | 400 V | 230 V | 400 V |
| Fuse size | 3x63A | 3X40A | 3x20A | 3x10A |
| Rated current total | 54.2 A | 30.6 A | 14.0 A | 7.4 A |
| Rated power total | 19210 W | 19210 W | 3210 W | 3210 W |
| Rated Power el | 16000 W | 16000 W |
| Performance | |
|---|---|
| Fan speed, max | 3000 r/min |
| Capasity 86 %/SFP 1,5 | 4400 m3/h @ 230 Pa |
| Capasity 83 %/SFP 2 | 5850 m3/h @ 250 Pa |
| Component efficiency (EN 308) | 83.0 % |
| Power | |
| Frequency | 50 Hz |
| Rated Power Fans | 4x750W |
| Rated Power Rotormotor | 40.0 W |
| Ventilation | |
| Fan type | B-wheel |
| Fan motor control | Modbus |
| Automatic | CS2500 |
| Filter class, supply air | ePM1 55% (F7) |
| Filter type | Bag filter |
| Filter dim (bxhxd) | 592x592x640 |
| Installation | |
| Position | Technical room |

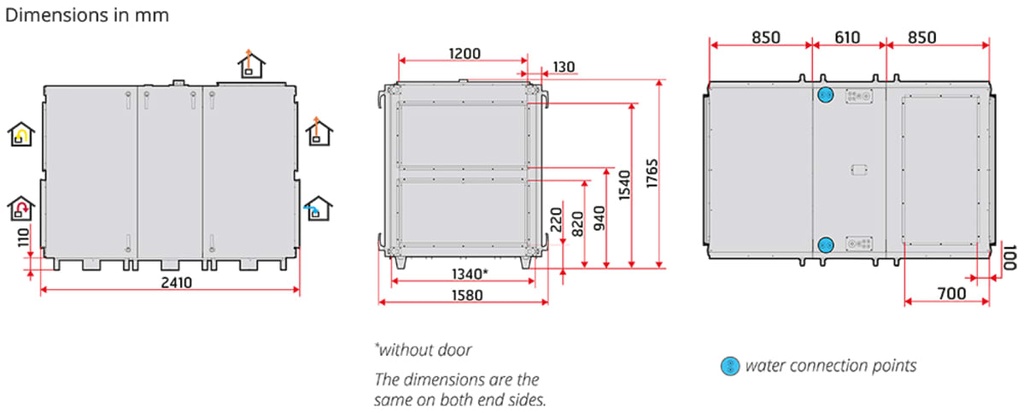

| Dimensions and weight | |
| Width (mm) | 2410 mm |
| Height (mm) | 1765 mm |
| Depth mm (without door) | 1340 mm |
| Depth (with handles) | 1580 mm |
| Weight | 657.0 kg |
| Weight fan | 4x15 kg |
| Weight doors | 4x21 kg + 2x20 kg |
| Weight rotormodule | 125.0 kg |
| Net inward transport | 348.0 kg |
| Duct connection (dimension) | 1200x600 mm |
| Brand | Flexit |
