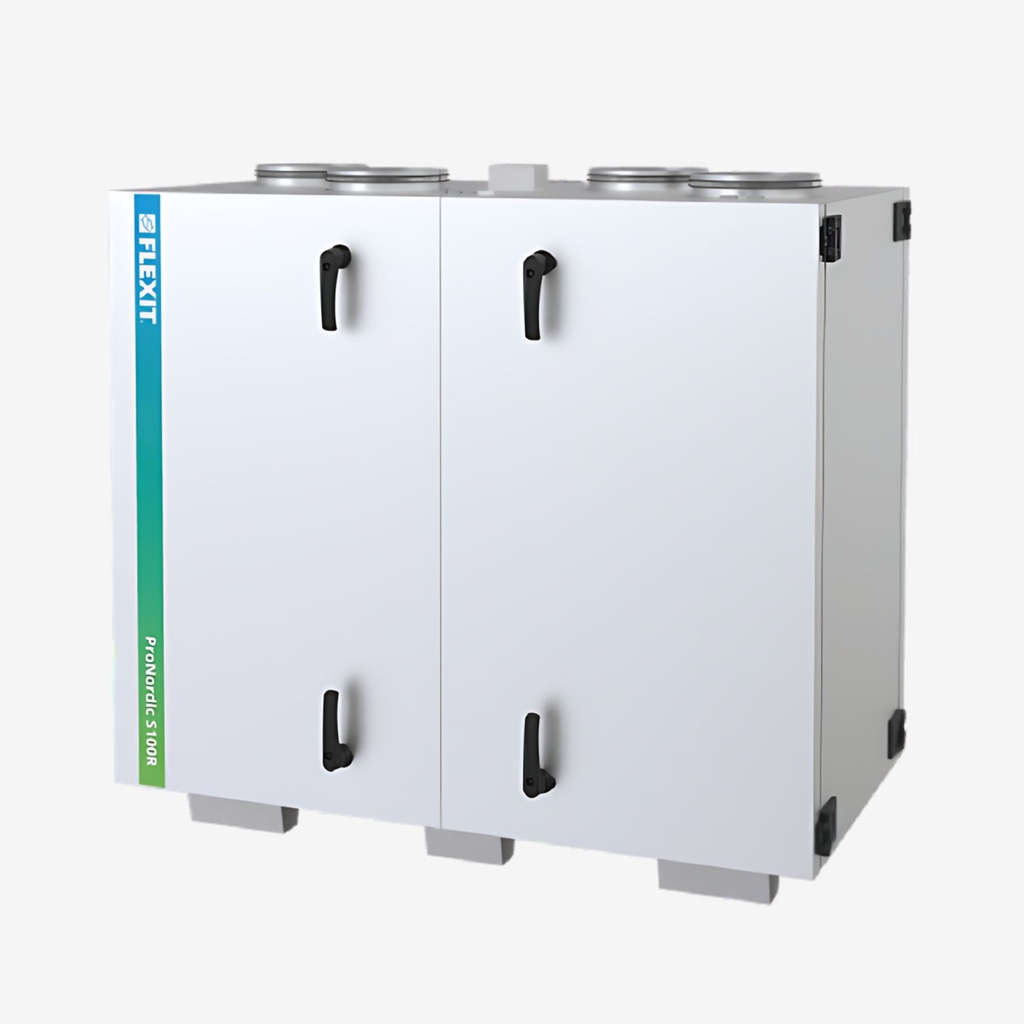

Flexit ProNordic S100R is a compact air handling unit with a rotary heat exchanger, designed for commercial buildings in demanding Nordic climatic conditions. With a maximum airflow of 1 275 m³/h and a circular Ø250 mm duct connection, it covers ventilation for office buildings, schools, retail spaces, fitness centres and apartment buildings. The unit is energy-efficient and quiet thanks to EC fans with radial B-wheels (2×500 W). The Siemens Climatix CS2500 control system with Modbus TCP/IP or RTU communication ensures easy integration into building management systems (BMS). Supplied as a right-hand variant with 400 V configuration, easily convertible to left-hand and 230 V directly on site.
Key Benefits
Performance Parameters
Flexit ProNordic S100R delivers an airflow of up to 1 275 m³/h. The circular Ø250 mm duct connection on top of the unit minimises pressure losses and simplifies ductwork routing.
(354 l/s)
(circular, top-mounted)
Siemens Climatix CS2500 control system
Integrated control system with constant airflow or 3-speed regulation. Modbus TCP/IP or RTU communication for connection to building management systems (BMS). ProPanel (push-button) or ProTouch (touch-screen display, Android) control panel available as an accessory. Time programmes (max. 4/day) and filter alarm based on pressure differential.
Flexible design — impossible to order wrong
Supplied as a right-hand variant with 400 V configuration. Conversion to left-hand and 230 V is done directly on site. The heating coil (electric 3 600 W or water) is installed on site. This flexibility eliminates the risk of ordering the wrong variant and saves costs when project changes occur.
Commercial buildings — offices, schools, retail
With an airflow of up to 1 275 m³/h (354 l/s), the ProNordic S100R is ideal for collective ventilation of apartment buildings, school facilities, retail spaces, fitness centres and small to medium-sized office buildings. A single unit ensures quality air for the entire building.
Robust construction for technical rooms
Double-walled panels with a thickness of 50 mm without thermal bridges ensure excellent thermal insulation. Thoughtful component placement facilitates installation and servicing. High-quality ePM1 55 % (F7) filtration on both supply and extract air captures fine dust and pollen.
Easy installation and servicing
ProNordic S100R is designed with a focus on efficient installation and maintenance. All air connections are located on the top of the unit (circular Ø250 mm connection), which simplifies ductwork routing.
The unit can be disassembled into individual modules — rotor module (39 kg), fans (2×11 kg) and doors (4×13.5 kg) — reducing the net weight for transport to 106 kg. Compact dimensions allow the unit to be carried through a 70 cm doorway.
Automatic bypass provides free cooling during transitional periods. Filter alarm based on pressure differential alerts when filter replacement is needed.
ProNordic is primarily installed indoors — in a technical room, AHU plant room or ceiling void within the building. The unit must be placed in a dry location protected from the weather.
ProPanel and ProTouch — two control options
ProPanel is a standard push-button control panel for basic operation and unit status overview. Suitable where simple control without advanced settings is sufficient.
ProTouch is a Siemens touch-screen panel (Android) with an application for local connection to the unit. It offers extended settings, visualisation of operating parameters and alarm history. Both panels are supplied separately as accessories.
Technical Specifications
| Parameter | Value |
|---|---|
| Max. airflow | 1 275 m³/h (354 l/s) |
| Heat exchanger type | Rotary (regenerative) |
| Fan type | B-wheel radial with EC motors |
| Fan power | 2×500 W (230 V) |
| Rotor motor power | 40 W |
| Max. fan speed | 2 700 rpm |
| Electric heating coil (optional) | 3 600 W |
| Water heating coil | Optional (on-site installation) |
| Rated voltage | 230 V or 400 V / 50 Hz |
| Total power (with electric coil) | 4 810 W |
| Duct connection | Ø250 mm (circular, top-mounted) |
| Filters | Compact ePM1 55 % (F7), 695×405×100 mm |
| Control system | Siemens Climatix CS2500 |
| Communication | Modbus TCP/IP or RTU |
| Fan regulation | ModBus (constant airflow / 3 speeds) |
| Dimensions (W×H×D) | 1 480×1 360×935 mm |
| Depth without doors | 695 mm |
| Gross weight | 230 kg |
| Net weight (transport) | 106 kg (fits through 70 cm door) |
| Rotor module weight | 39 kg |
| Fan weight | 2×11 kg |
| Door weight | 4×13.5 kg |
| Configuration | Right-hand (convertible to left-hand on site) |
| Installation | Floor-mounted, indoor installation |
| Control panels | ProPanel (push-button) / ProTouch (touch-screen, Siemens Android) |
| Certifications | ERP 2018 (EU 1253/2014), Nordic Swan Ecolabel eligible |
| Product no. | 171000 |
| GTIN | 7023671710002 |
Electrical Variants
| Parameter | Electric coil 230 V | Electric coil 400 V | Water coil 230 V | Water coil 400 V |
|---|---|---|---|---|
| Total power | 4 810 W | 4 810 W | 1 210 W | 1 210 W |
| Electric coil power | 3 600 W | 3 600 W | — | — |
| Rated current | 14.3 A | 8.3 A | 5.3 A | 3.1 A |
| Fuse rating | 3×20 A | 3×16 A | 3×10 A | 3×10 A |
ProNordic S100R vs S140R — which model to choose?
ProNordic S100R delivers an airflow of up to 1 275 m³/h and is the smallest model in the commercial ProNordic range — ideal for smaller commercial spaces, apartment buildings and schools where technical rooms are space-constrained.
For larger buildings requiring higher airflow, consider ProNordic S140R (up to 1 555 m³/h) or ProNordic S180R (up to 1 800 m³/h). For even larger projects, ProNordic S220R (up to 2 400 m³/h) or ProNordic S260R (up to 3 900 m³/h) are available. The full ProNordic range includes 14 models with airflows from 780 to 6 000 m³/h in S (top connection) and L (side connection) variants.
For residential use (family homes), we recommend the Flexit Nordic range.
Compact commercial ventilation. In stock. Flexible configuration.
Flexit ProNordic S100R is an energy-efficient air handling unit with a rotary heat exchanger, airflow of up to 1 275 m³/h, Siemens Climatix CS2500 control and a 5-year warranty — flexible, reliable and in stock.
