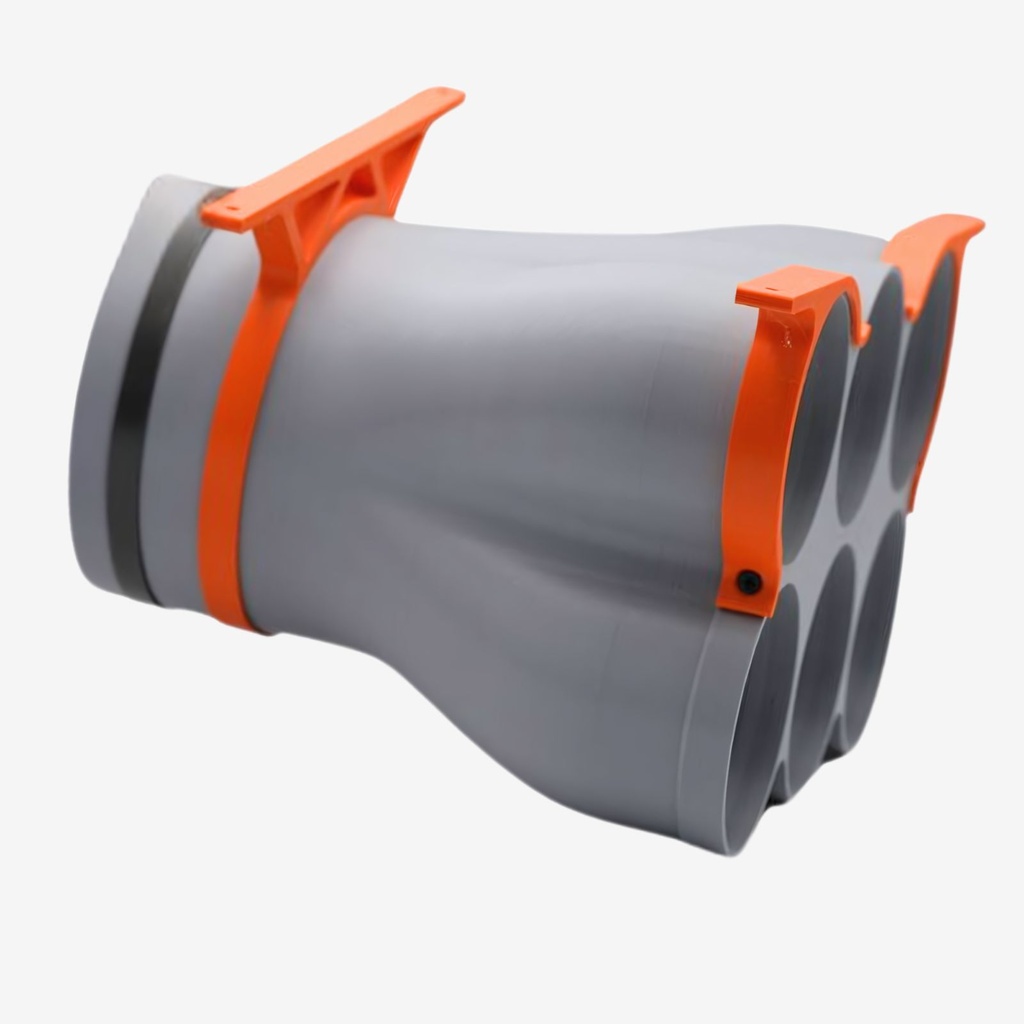

TheDistributor Cone 6x DN90, Neck 160is a specialized component designed to transition airflow from 6 DN90 ducts to a single 160mm diameter outlet. This configuration is ideal for efficiently consolidating multiple air channels into one, optimizing airflow in ventilation systems.
Key Features:
- Efficient Air Distribution:Combines eight DN90 ducts into a single 160mm outlet, streamlining airflow management.
- Durable Construction:Manufactured with high-quality materials to ensure longevity and reliable performance.
- Easy Integration:Designed for seamless installation within existing ventilation systems, facilitating straightforward upgrades or expansions.
Applications:
This distributor cone is suitable for various ventilation setups, particularly in residential or commercial buildings where multiple ducts need to converge into a single pathway. Its design ensures minimal airflow resistance, contributing to the overall efficiency of the HVAC system.
Specifications:
- Connections:6x DN90 inlets
- Outlet Diameter:160mm
- Material:High-quality, durable material
- Brand:Ventit
By integrating the Distributor Cone 8x DN90, Neck 160 into your ventilation system, you can achieve a more organized and efficient airflow distribution, enhancing the system's performance and reliability.
Packaging:
Poznámka k priemeru: DN90 označuje vonkajší priemer potrubia 90 mm; vnútorný priemer je 75 mm.
| Výrobca | Ventit |
VentPlan dáta
Produktový modelVentPlan model
Komponent
- Model
- DB 6xDN90 (OD90–ID75 / Ø160)
- Číslo
- 712040
- Výrobca
- Ventit
- Kategória
- dividers
3D náhľad
OBJ + MTLRozdeľovací box pre napojenie 6× DN90 (OD90/ID75) na hlavné hrdlo Ø160. Dostupné: 2D diagram, 3D OBJ model, MTL materiály.
| Typ komponentu | rozdeľovací box |
|---|---|
| Sekundárne napojenia | 6× DN90 |
| Vonkajší / vnútorný priemer | OD90 / ID75 |
| Hlavné hrdlo | Ø160 |
| 3D model | OBJ + MTL |
