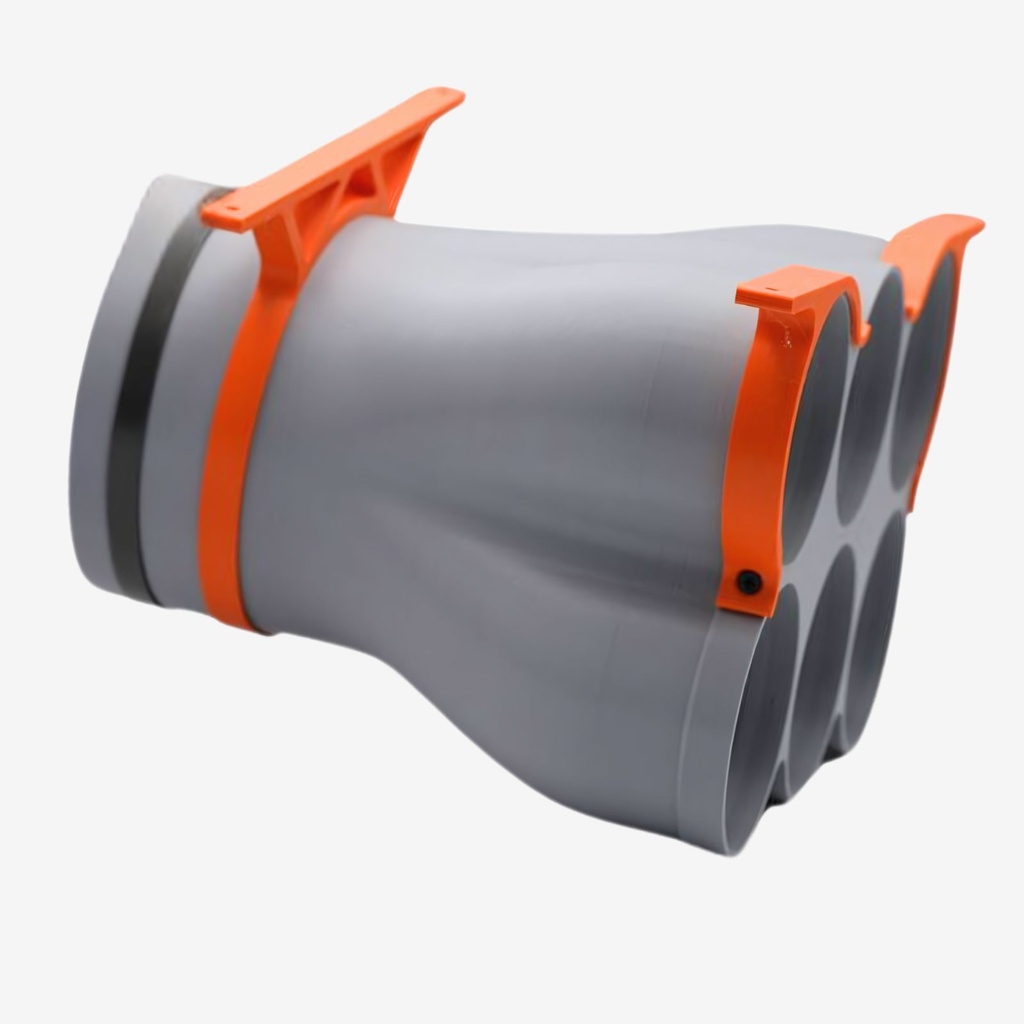

TheDistributor Cone 6x DN90, Neck 160is a specialized component designed to transition airflow from 6 DN90 ducts to a single 160mm diameter outlet. This configuration is ideal for efficiently consolidating multiple air channels into one, optimizing airflow in ventilation systems.
Key Features:
- Efficient Air Distribution:Combines eight DN90 ducts into a single 160mm outlet, streamlining airflow management.
- Durable Construction:Manufactured with high-quality materials to ensure longevity and reliable performance.
- Easy Integration:Designed for seamless installation within existing ventilation systems, facilitating straightforward upgrades or expansions.
Applications:
This distributor cone is suitable for various ventilation setups, particularly in residential or commercial buildings where multiple ducts need to converge into a single pathway. Its design ensures minimal airflow resistance, contributing to the overall efficiency of the HVAC system.
Specifications:
- Connections:6x DN90 inlets
- Outlet Diameter:160mm
- Material:High-quality, durable material
- Brand:Ventit
By integrating the Distributor Cone 8x DN90, Neck 160 into your ventilation system, you can achieve a more organized and efficient airflow distribution, enhancing the system's performance and reliability.
Packaging:
Poznámka k průměru: DN90 označuje vnější průměr potrubí 90 mm; vnitřní průměr je 75 mm.
| Výrobce | Ventit |
VentPlan data
Produktový modelVentPlan model
Komponenta
- Model
- DB 6xDN90 (OD90–ID75 / Ø160)
- Číslo
- 712040
- Výrobce
- Ventit
- Kategorie
- dividers
3D náhled
OBJ + MTLRozdělovací box pro napojení 6× DN90 (OD90/ID75) na hlavní hrdlo Ø160. Dostupné: 2D diagram, 3D OBJ model, MTL materiály.
| Typ komponentu | rozdělovací box |
|---|---|
| Sekundární napojení | 6× DN90 |
| Vnější / vnitřní průměr | OD90 / ID75 |
| Hlavní hrdlo | Ø160 |
| 3D model | OBJ + MTL |
