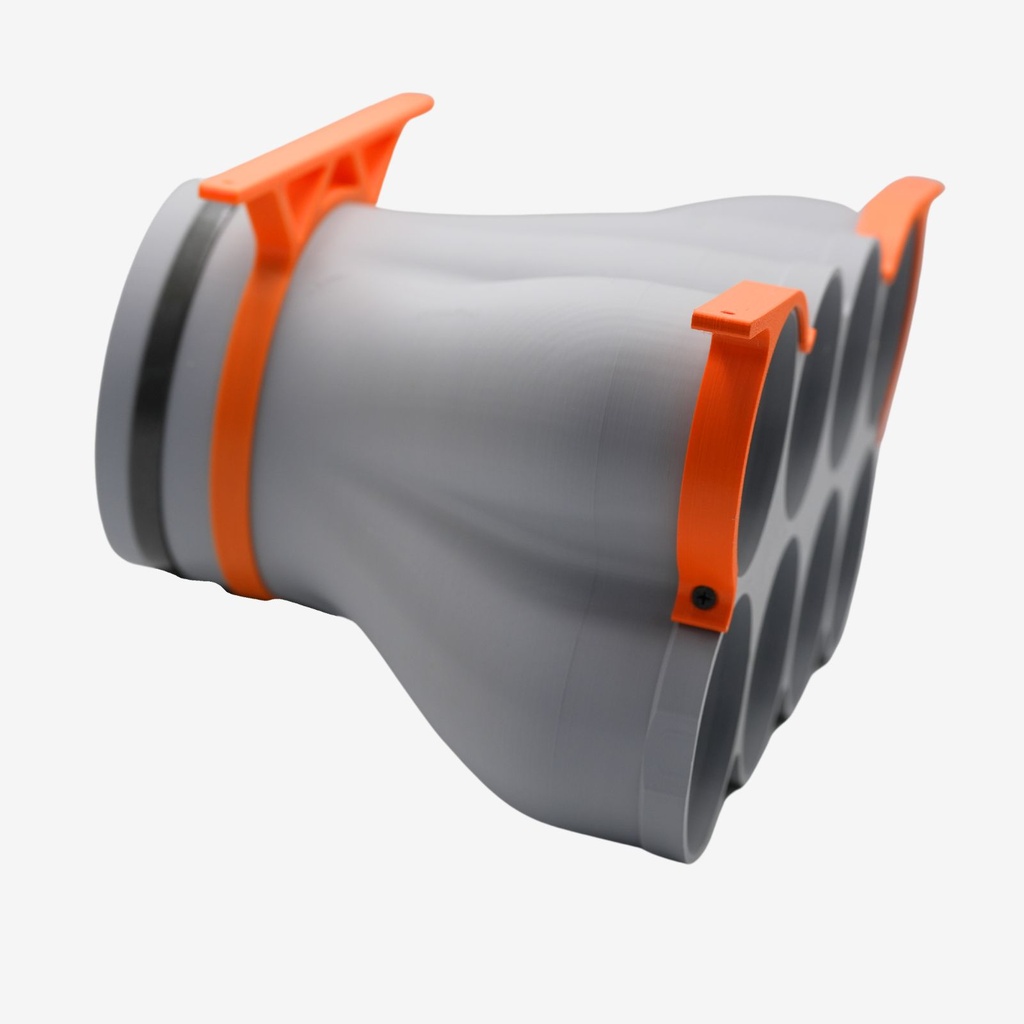

TheDistributor Cone 8x DN90, Neck 160is a specialized component designed to transition airflow from eight DN90 ducts to a single 160mm diameter outlet. This configuration is ideal for efficiently consolidating multiple air channels into one, optimizing airflow in ventilation systems.
Key Features:
- Efficient Air Distribution:Combines eight DN90 ducts into a single 160mm outlet, streamlining airflow management.
- Durable Construction:Manufactured with high-quality materials to ensure longevity and reliable performance.
- Easy Integration:Designed for seamless installation within existing ventilation systems, facilitating straightforward upgrades or expansions.
Applications:
This distributor cone is suitable for various ventilation setups, particularly in residential or commercial buildings where multiple ducts need to converge into a single pathway. Its design ensures minimal airflow resistance, contributing to the overall efficiency of the HVAC system.
Specifications:
- Connections:8x DN90 inlets
- Outlet Diameter:160mm
- Material:High-quality, durable material
- Brand:Ventit
By integrating the Distributor Cone 8x DN90, Neck 160 into your ventilation system, you can achieve a more organized and efficient airflow distribution, enhancing the system's performance and reliability.
Packaging:
Why choose VENTIT?
VENTIT, a proud Slovak manufacturer, specializes in high-quality air ventilation duct parts. With a focus on superior design and enduring performance,
VENTIT has earned a reputation for providing solutions tailored to the needs of modern ventilation systems.
Each product reflects the company’s dedication to innovation, functionality, and sustainability.
By choosing VENTIT, you're investing in Slovak expertise and quality assurance that enhances the performance of your ventilation systems.
Uwaga dotycząca średnicy: DN90 oznacza średnicę zewnętrzną przewodu 90 mm; średnica wewnętrzna wynosi 75 mm.
| Marka | Ventit |
Dane VentPlan
Model produktuModel VentPlan
Komponent
- Model
- DB 8xDN90 (OD90–ID75 / Ø160)
- Numer
- 712043
- Producent
- Ventit
- Kategoria
- dividers
Podgląd 3D
OBJ + MTLSkrzynka rozdzielcza do podłączenia 8× DN90 (OD90/ID75) do króćca głównego Ø160. Dostępne: diagram 2D, model 3D OBJ, materiały MTL.
| Typ komponentu | skrzynka rozdzielcza |
|---|---|
| Połączenia wtórne | 8× DN90 |
| Średnica zewn. / wewn. | OD90 / ID75 |
| Króciec główny | Ø160 |
| Model 3D | OBJ + MTL |
