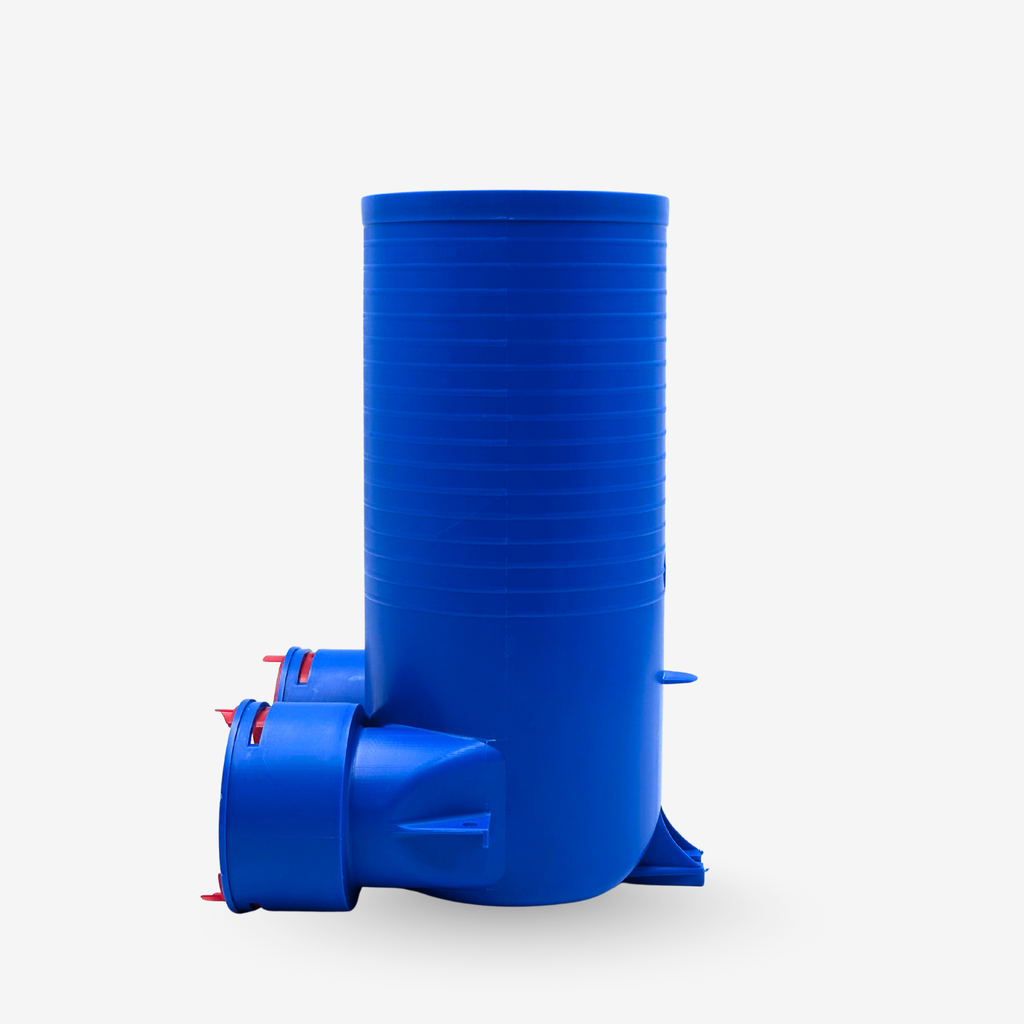

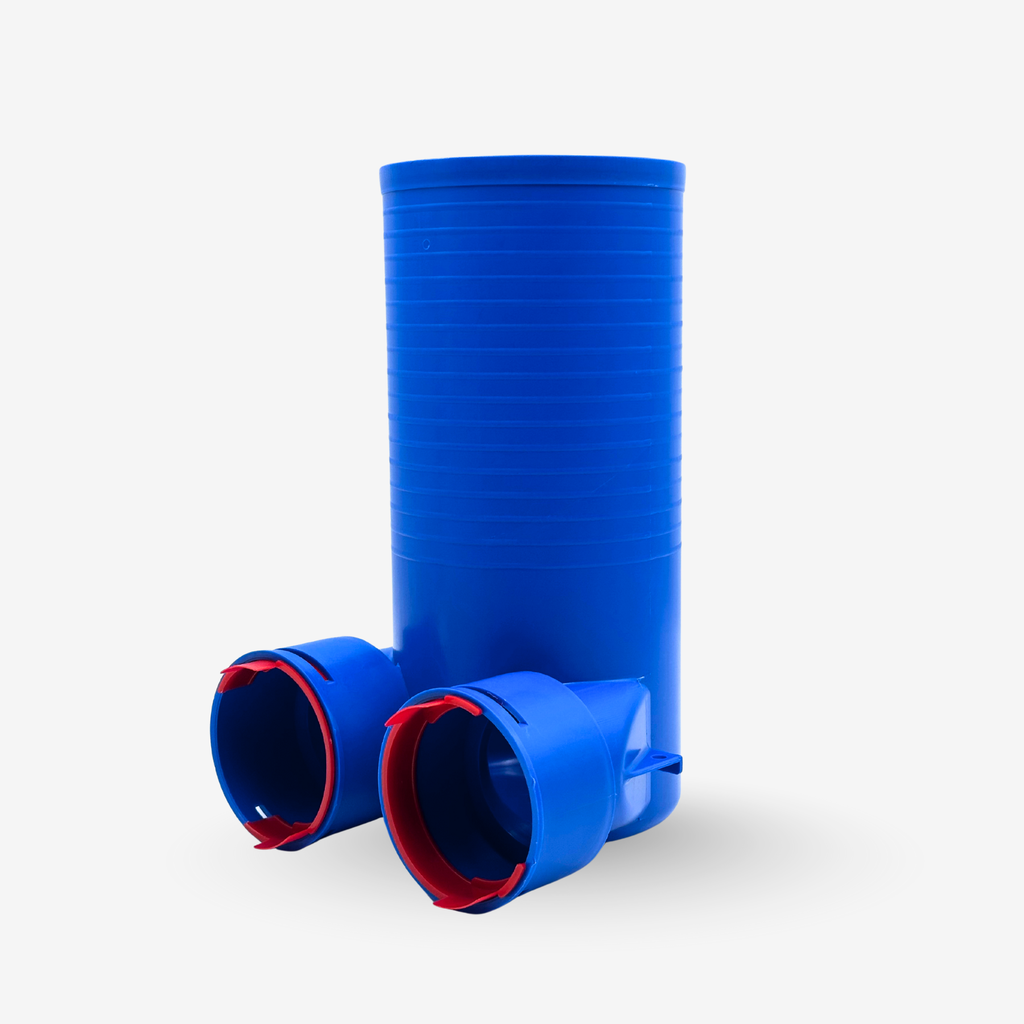

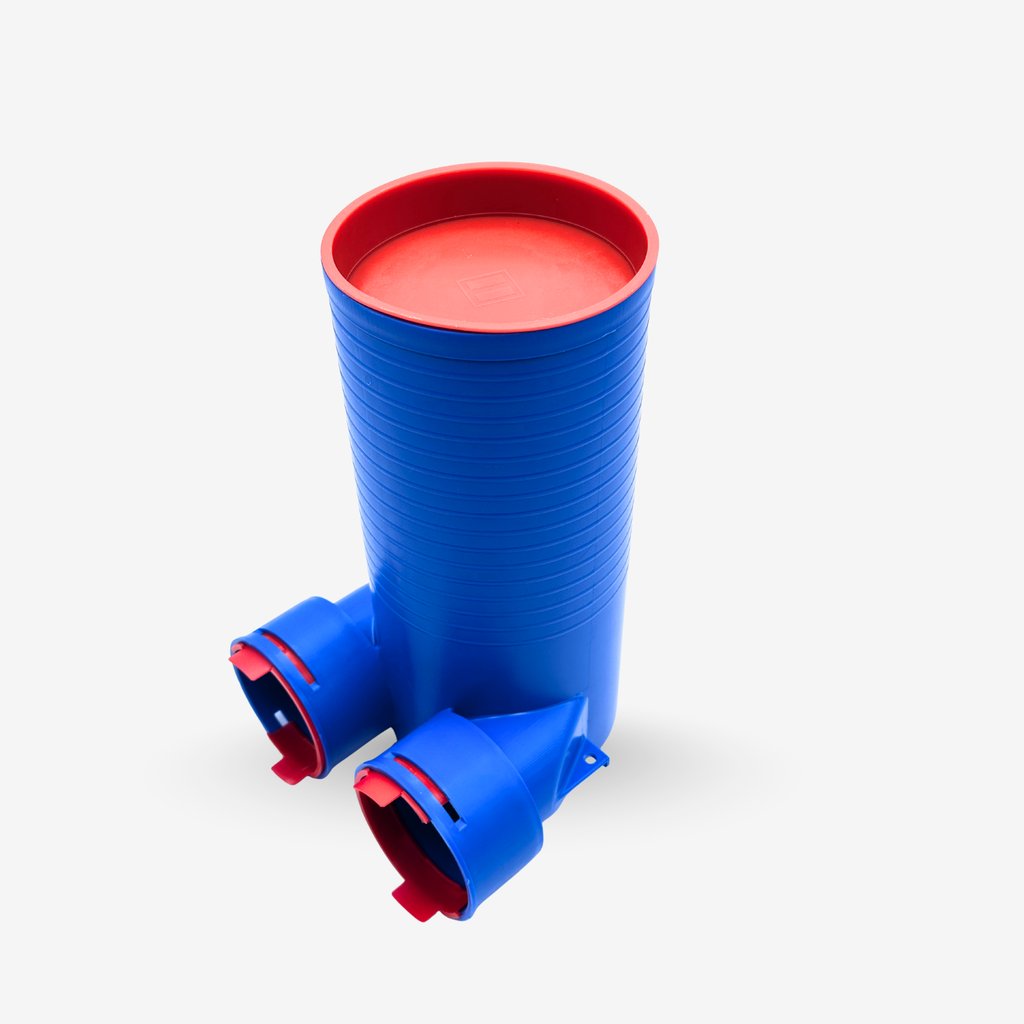

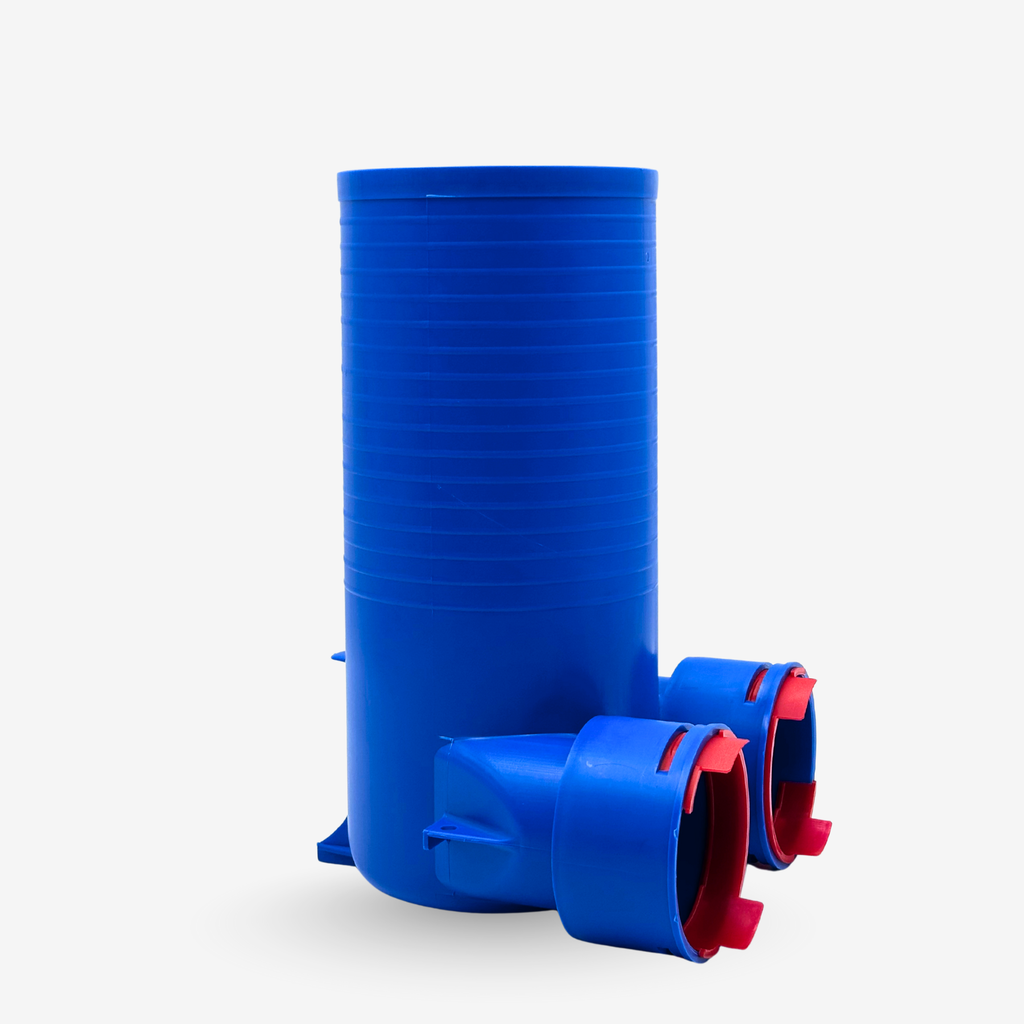

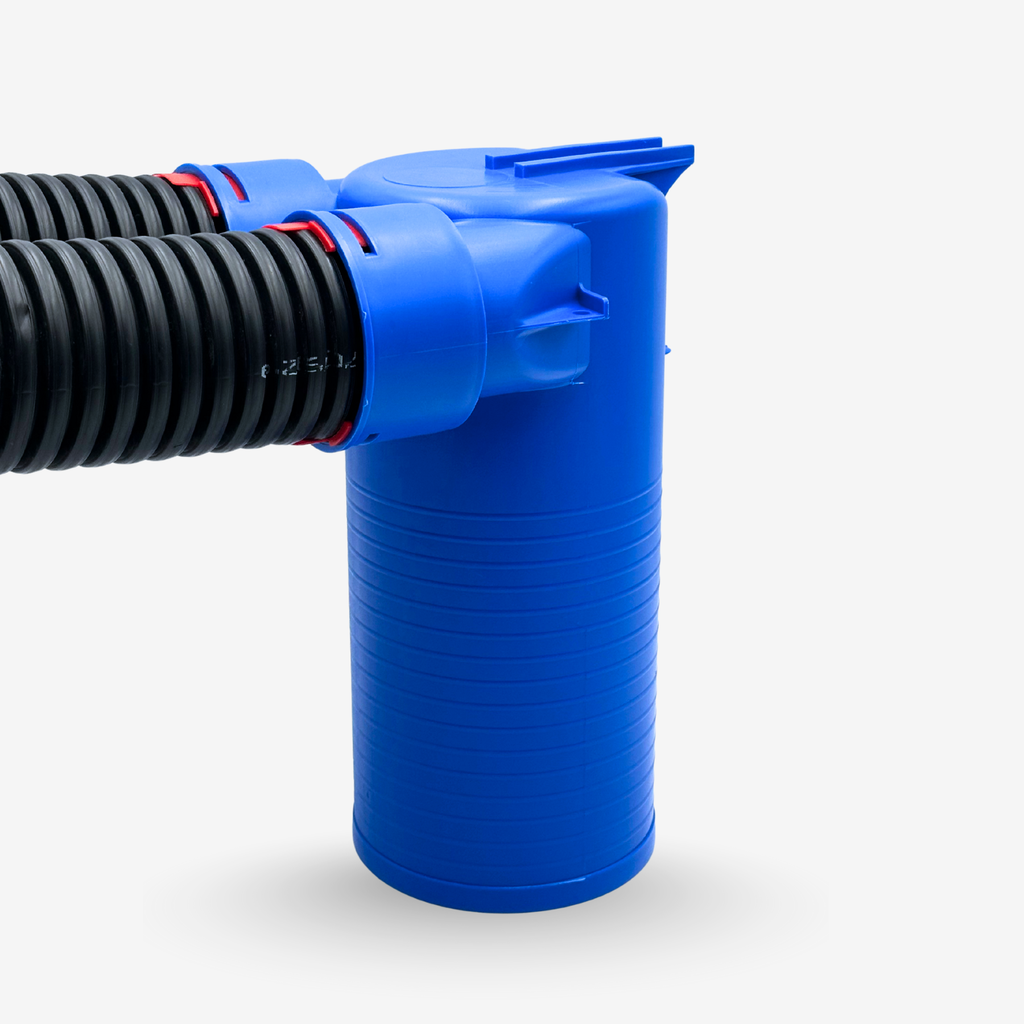

Supply and exhaust box Classic AST 2xDN75/125 – 300mm

Product Description

Supply and Exhaust box AST 2xDN75/125 – 300 mm is a specialized transition component for ventilation and duct systems, designed to ensure reliable airflow transfer and distribution between ducts of different diameters. The box is manufactured with one inlet DN125 and two outlets DN75 at a 90° angle, which allows efficient integration into distribution networks while maintaining minimal pressure losses and constant airflow.

This component is suitable for residential, commercial, and industrial applications within HVAC (Heating, Ventilation, and Air Conditioning) systems, where the connection of main distribution lines with smaller branch ducts is required.

Technical Advantages

• Click System & Easy Installation: Enables fast, secure, and straightforward integration without additional modifications.
• Optimized Aerodynamics: The 90° outlet design ensures uniform airflow distribution, reduced turbulence, and quiet operation.
• Standardized Dimensions: DN125 inlet and DN75 outlets allow seamless connection to standard duct systems.
• Smooth Inner Layer: Minimizes resistance, ensuring free and stable airflow.
• Robust & Hygienic Material: Manufactured from durable polypropylene with antistatic and antibacterial properties, resistant to mechanical stress and wear.
• Maintenance-Free Operation: Provides consistent performance without the need for regular servicing.

Technical Parameters

• Connectors: 1× Ø125 mm / 2× Ø75 mm
• Material: Polypropylene
• Height: 300 mm
• Weight: 330 g
• Airflow Volume: Approx. 70 m³/h

Applications

• Residential Installations: Ideal for connecting main ducts with branch lines in houses and apartments.
• Commercial Buildings: Suitable for offices, retail, and service facilities requiring stable and constant airflow.
• Industrial Applications: Ensures reliable air distribution in production and technical halls with high durability requirements.
