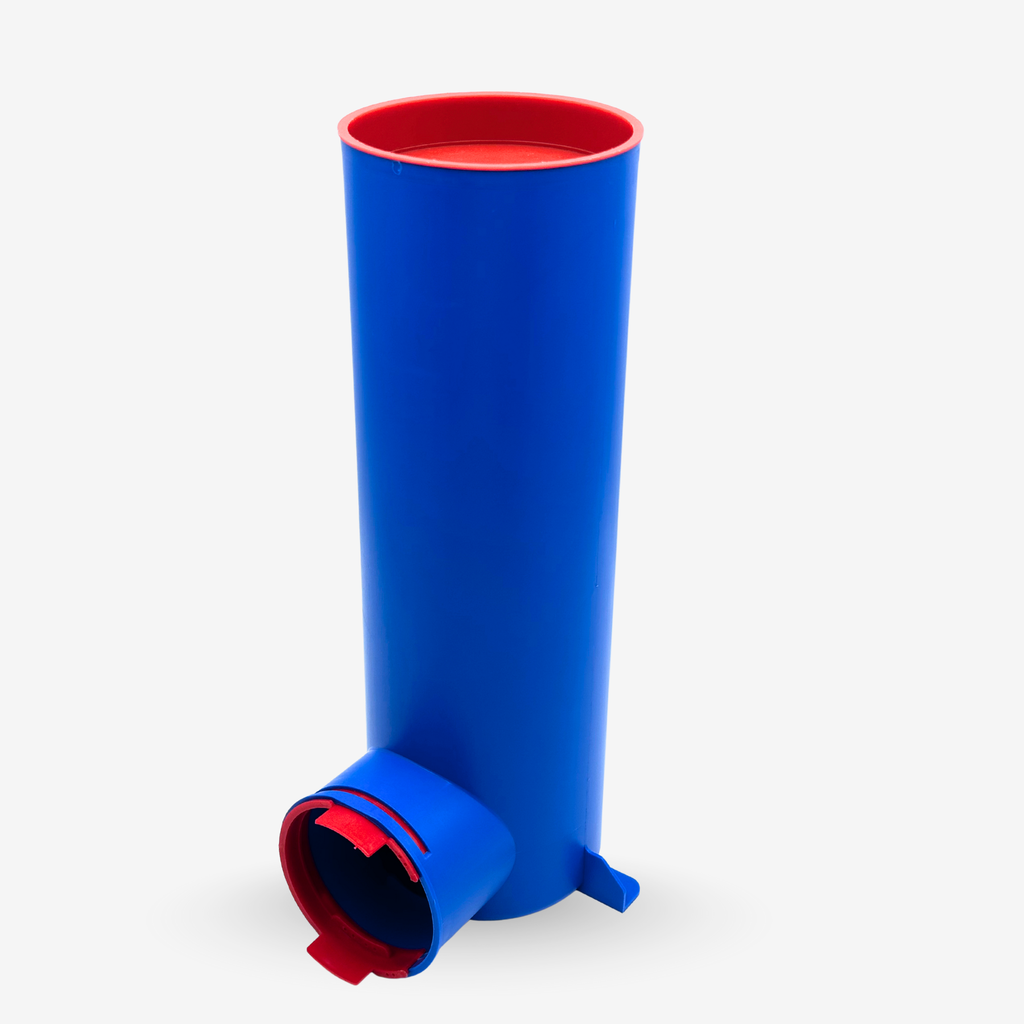

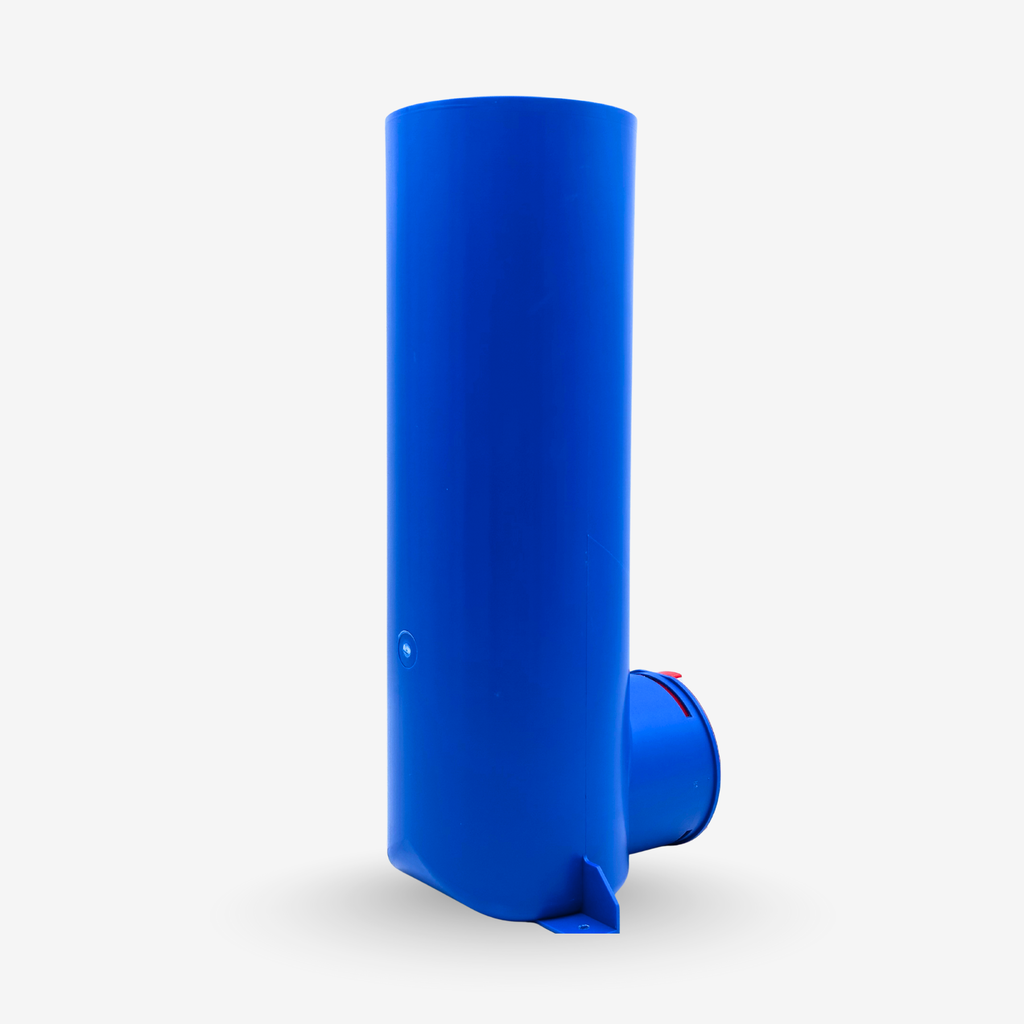

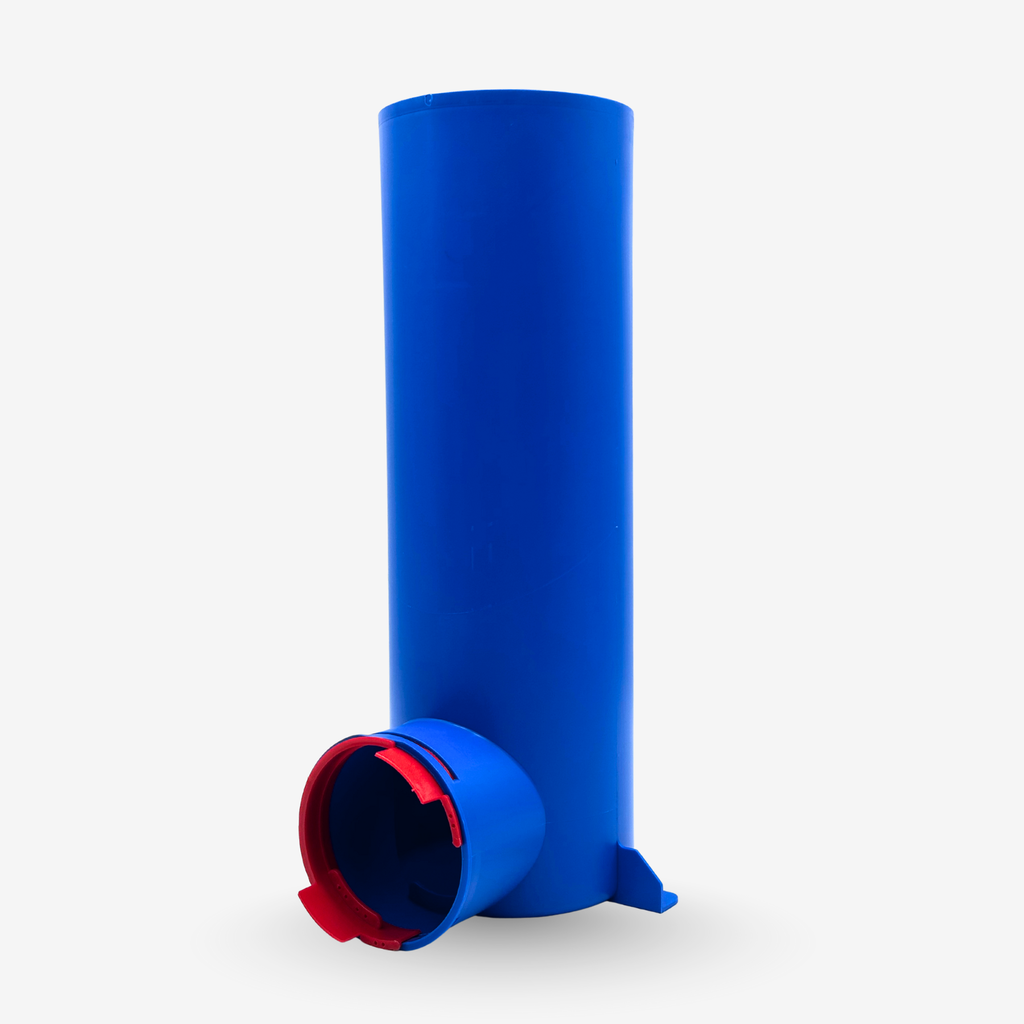

Supply and exhaust box AST 1xDN90/125 – 400mm

Product Description

Supply and Exhaust box AST 1xDN90/125 – 400 mm is a specialized transition component for ventilation and duct systems, designed to ensure reliable transfer and distribution of air between ducts of different diameters. The box is manufactured with an inlet diameter DN125 and one outlet DN90 at a 90° angle, which enables efficient integration into distribution networks while maintaining minimal pressure losses and constant airflow.

This component is suitable for residential, commercial, and industrial applications within HVAC (Heating, Ventilation, and Air Conditioning) systems, where precise connection of main distribution lines with smaller branches is required.

Technical Advantages

• Click System & Easy Installation: Enables fast, secure, and straightforward integration without additional modifications.
• Optimized Aerodynamics: The 90° outlet ensures uniform airflow distribution, reduced turbulence, and quiet operation.
• Standardized Dimensions: DN125 inlet and DN90 outlet allow seamless connection to standard duct systems.
• Smooth Inner Layer: Minimizes resistance, ensuring free and stable airflow.
• Robust & Hygienic Material: Manufactured from durable polypropylene with antistatic and antibacterial properties, resistant to mechanical stress and wear.
• Maintenance-Free Operation: Provides consistent performance without the need for regular servicing.

Technical Parameters

• Connectors: 1x Ø125 mm / 1x Ø90 mm
• Material: Polypropylene
• Height: 400 mm
• Weight: 360 g
• Airflow Volume: Approx. 50 m³/h


Applications

• Residential Installations: Connecting main ducts with branch lines in houses and apartments.
• Commercial Buildings: Integration into office, retail, and service facilities requiring constant airflow.
• Industrial Applications: Air distribution in production and technical halls demanding high durability and reliability.
